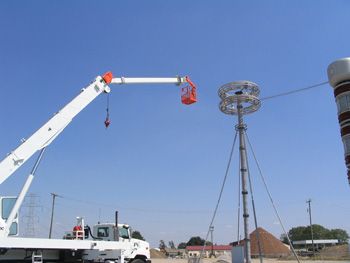

LineWise Insulated Work Platform

The LineWise IWP-765kV Insulated Work Platform is designed to enhance worker productivity and increase job functions performed with hydraulic telescoping cranes and digger derricks. The platform permits bare-hand work and de-energized line construction, and reduces lineworker fatigue by eliminating the need to climb towers.

Featuring a tried-and-proven design, the IWP-765kV provides electrical insulation to personnel working on live transmission lines and equipment at voltages up to 765 kV. The insulated jib consists of a main structural fiberglass member, which is filament wound with computer-controlled, continuous-roving epoxy/anhydride resin. It’s also sealed with bulkhead covers to minimize maintenance and protect from contaminants that may reduce insulation properties.

The IWP-765kV features a radio control system that provides flexible, precise operation. The control system incorporates fully proportional, state-of-the-art controls. These allow simultaneous operation of the telescope, boom and rotation functions, and enable the operator to better position the platform to suit virtually any job.

Every unit comes standard with a two-person, steel-constructed basket, which can be easily installed and removed by two lineworkers. It features a 600-pound-capacity, 36-inch-by-72-inch platform, with the controls located on the curbside near the top rail.
