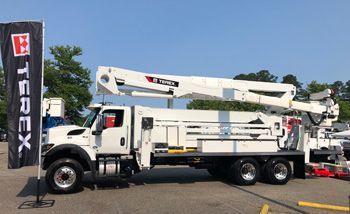

Terex TL Series of Aerial Devices

Terex Utilities has expanded its TL Series of aerial devices with three new telescopic and material-handling models designed for transmission work.

The series includes the TL80, TL100 and TL80/112, which provide 80-foot, 100-foot and 112-foot working heights, respectively. The new TL transmission aerial devices were developed to have strong working ranges when compared to similar transmission aerials. For example, the TL100 has more than 61 feet of horizontal reach and a maximum material-handling capacity of 1,000 pounds.

All three models feature end-mounted, two-person platforms with capacities up to 700 pounds. Self-leveling platforms rotate 180 degrees. The TL80 and TL80/112 also are available with an option of a side-mounted platform having a jib capacity up to 2,000 pounds.

Designed to provide ground access, the platform on all TL units can be lowered to within inches of the ground. In addition, the boom design increases bed space and bed access to the bucket. Use of high-grade, high-yield-strength steel in the upper and lower boom sections provides rigid operation while reducing weight in the boom. The lower boom comes with a fiberglass lower boom insert and an upper boom that allows the TL80 and TL80/112 Category B Dielectric to be rated for 138-kV work. The TL100 can be rated up to 69 kV. www.terex.com/utilities
