Optronics International Combination Lamp

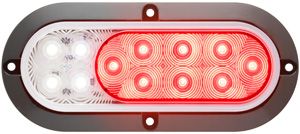

The redesigned Fusion LED combination stop, tail, turn and backup lamp from Optronics International is 25 percent smaller. It includes new, optimized circuitry that hosts both red and white LEDs on a single board, plus a patent-pending optical design.

The original 9-inch oval Fusion lamp was introduced at the 2014 Work Truck Show and has since been made available in 4-inch round and 6-inch oval formats with grommet- and flange-mount versions that fit virtually any standard lighting application. The entire family of Fusion LED combination stop, tail, turn and backup lamps is also being upgraded utilizing the new technology.

The Fusion lamps have been radically redesigned and now employ a more advanced circuit-board configuration and LED light projection technology. An optical bridge helps project red LED light from the red area of the lens to the clear area of the lens during the braking function. The innovative design enables the lamps to use fewer diodes, reduces heat load and lowers the overall lamp cost.

Mounting the new 6-inch Fusion surface-mount LED combination lamp requires only a half-inch hole for the lamp’s wiring and four mounting holes to accommodate rivets or screws. The low-profile, half-inch-thick LED lamp mounts snugly to the vehicle’s surface while preserving the vehicle’s structural soundness.

The new Fusion LED combination stop, tail, turn and backup lamps are expected to be available in the second quarter of 2016. www.optronicsinc.com
