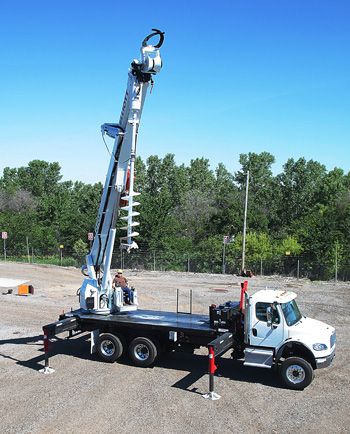

Elliott Equipment Co. D105 Digger Derrick

Elliott Equipment Co. has introduced the D105, a new ANSI 10.31 digger derrick specifically designed for transmission and heavy-duty construction projects. Mounted on a tandem axle chassis, the D105 boasts a 107-foot sheave height, 20,000 foot-pounds of torque and a 41-foot digging radius. The unit is equipped with Elliott’s high-boom pin-point geometry, allowing for maximum power out of the hole, a variable displacement piston pump and a new ergonomic seated control console.

Other key features of the D105 include auger spin speeds of 35 rpm (low) and 80 rpm (high); digging depth of up to 16 feet; heavy-duty tilting pole claw attachment and pole guide designed for gripping large poles; new front-entry seated pedestal control station; ability to handle augers up to 48 inches in diameter; 12,000-pound single line pull main winch with synthetic rope and 30,000-pound maximum lift capacity at a 10-foot radius; mounts on tandem axle chassis; radio remote control boom and digger operation; and optional out and down EZ-CRIB high-penetration two-stage vertical outriggers with full- or mid-span operation. www.elliottequip.com
